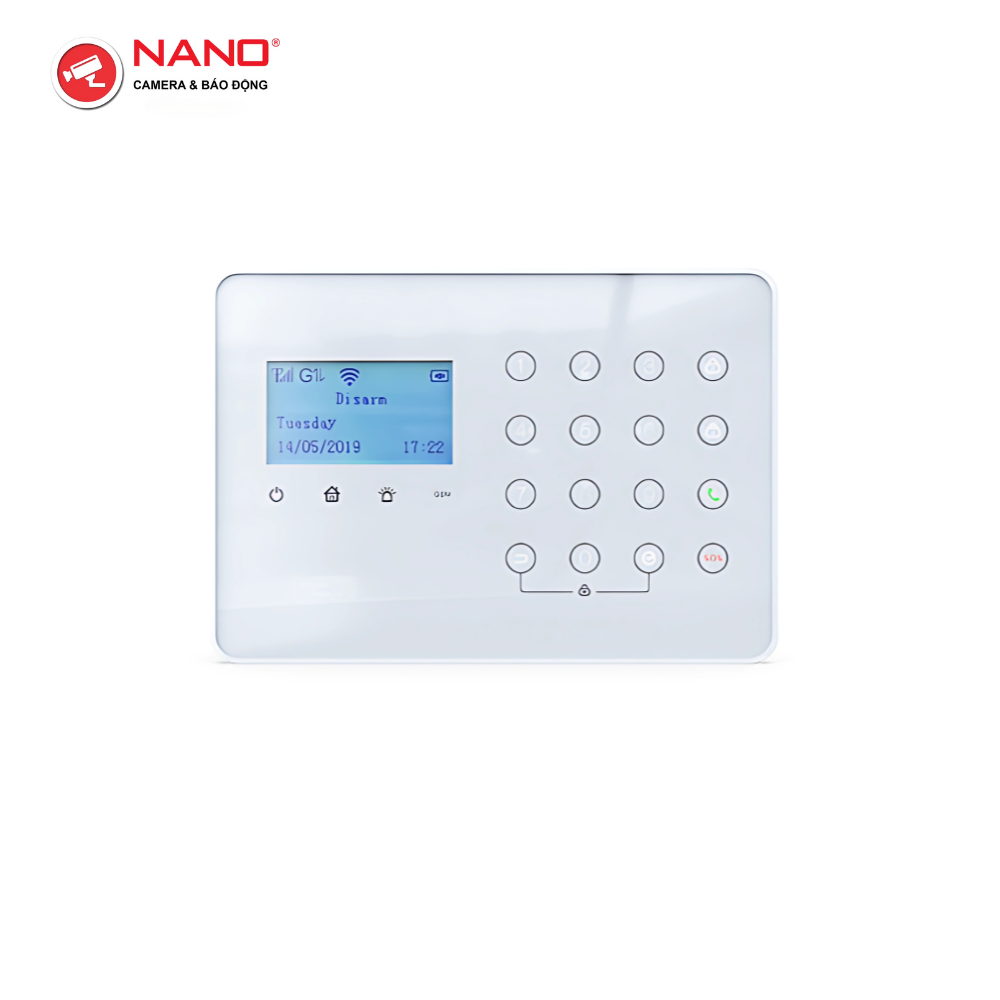

HY-H7/W7
Explore your future home life
Safe home rest assured every day
H7/W7 has been designed for people who want to start a unique smart home adventure.
Perfect for apartments or small houses.
The heart of the HEYI smart home
H7/W7 is the heart and mind of a smart home that constantly cares for
the comfort and safety of your entire family.
The smart hub manages and communicates with all smart system data from sensors,
processes all the data and gives an output to perform appropriate actions.
Check out H7/W7 capabilities
H7/W7 smart home system supports you in many areas of life.
Smart burglar alarm system
W7 works together with door/window sensor,
PIR detector and remote control,
well protect your beloved home from intrusion.

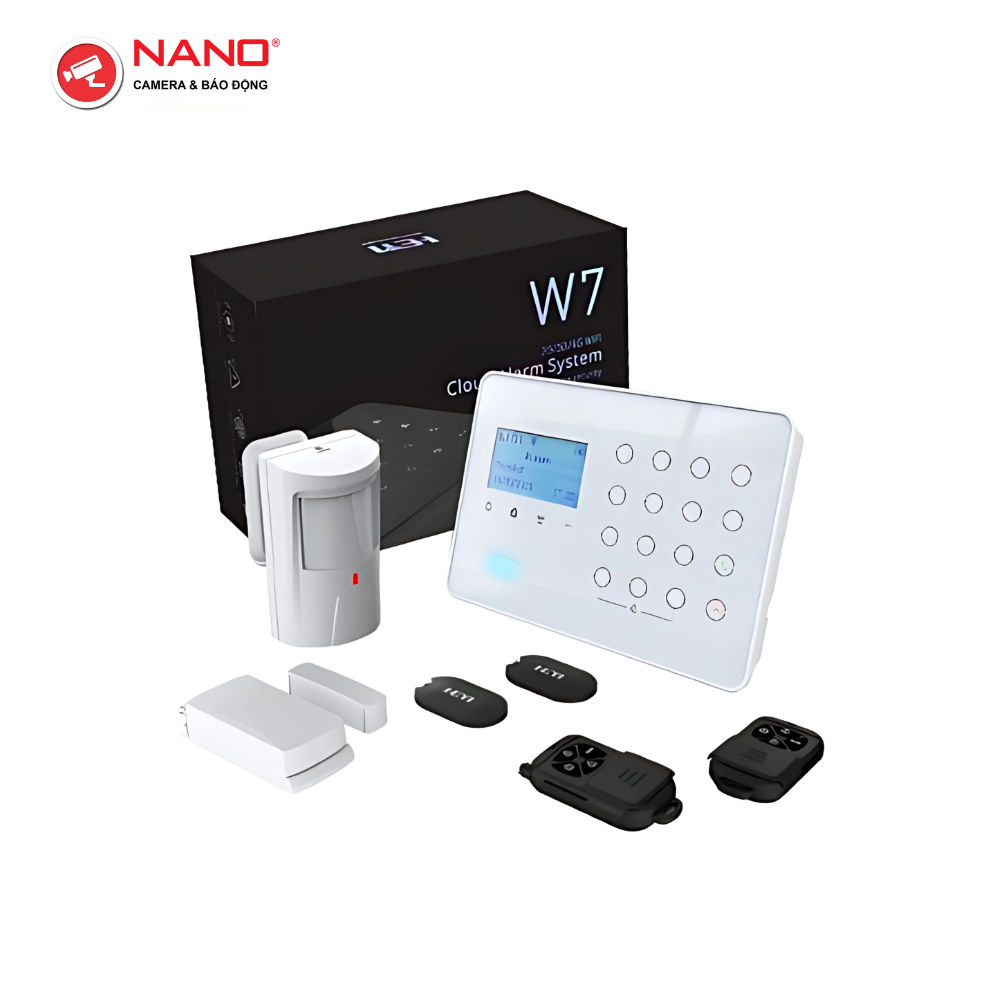

HY-H7/W7 + Door/Window Protector + Pir Detector + Rmote Controller
Smart environment safety detecting system
W7 works together with smoke sensor, gas and
water leakage sensor, with the automatically water
sprinkler to protect your home from any
potential fire, gas/water leakage alarm.
HY-H7/W7 + Smoke Detector + Gas Detector + Water Leakage
Smart emergency calling system
W7 works together with SOS button, SOS box
to protect the senior and kids. Ensure and provide
them immediate help in emergency
HY-H7/W7 + SOS Box + SOS Button + Rmote Controller
Smart home life
W7 warms your kitchen while you prepare your lunch.
Even can make your living room comfort and warm
after you get back home . Share the pleasure of
home automation with all of your guests.
HY-H7/W7 + Camera + Input Output Module + Intelligence Appliance
Smart home security system
W7 can be combined with Indoor and Outdoor/outdoor Solar Siren to form a smart home security system to protect Your life and property.
HY-H7/W7 + Indoor Siren + Outdoor Siren + Outdoor Solar Siren
DIMENSIONS
- Comparison HY-W7 HY-H7
- Power AC100V~240V AC100V~240V
- Battery 7.4V/1200mAh 7.4V/1200mAh
- Built-in siren 80dB(within 1M) 90dB(within 1M)
- Wireless working frequency 433MHz 433MHz
- Output current of wired horn 50mA 50mA
- Working temperature 10°C- +50°C 10°C- +50°C
- humidity 40% ~ 70% 40% ~ 70%
- LTE-FDD B1/B3/B7/B8/B20/B28A /
- LTE-TDD B38/B40/B41 /
- WCDMA B1/B8 /
- GSM/EDGE B3/B8 /
- GSM Working Frequency 850MHz, 900MHz, 1800MHz, 1900MHz 850MHz, 900MHz, 1800MHz, 1900MHz
- GSM Emitting Frequency ≤2W(850/900MHz), ≤1W(1800/1900MHz) ≤2W(850/900MHz), ≤1W(1800/1900MHz)
- WIFI standard 802.11 b/g/n /
- WIFI frequency 2.4G /
- WIFI encryption mechanism WEP / WAP-PSK / WPA2-PSK /
- Networking protocol IPv4, TCP/UDP/HTTP /
- Wireless distance PIR detector and alarm panel PIR detector and alarm panel
400m (in the open area) 400m (in the open area)
Door sensor and alarm panel Door sensor and alarm panel
200m (in the open area) 200m (in the open area)
Remote controller and alarm panel Remote controller and alarm panel
100m (in the open area) 100m (in the open area)
Siren and alarm panel Siren and alarm panel
300m( in the open area) 300m( in the open area)
