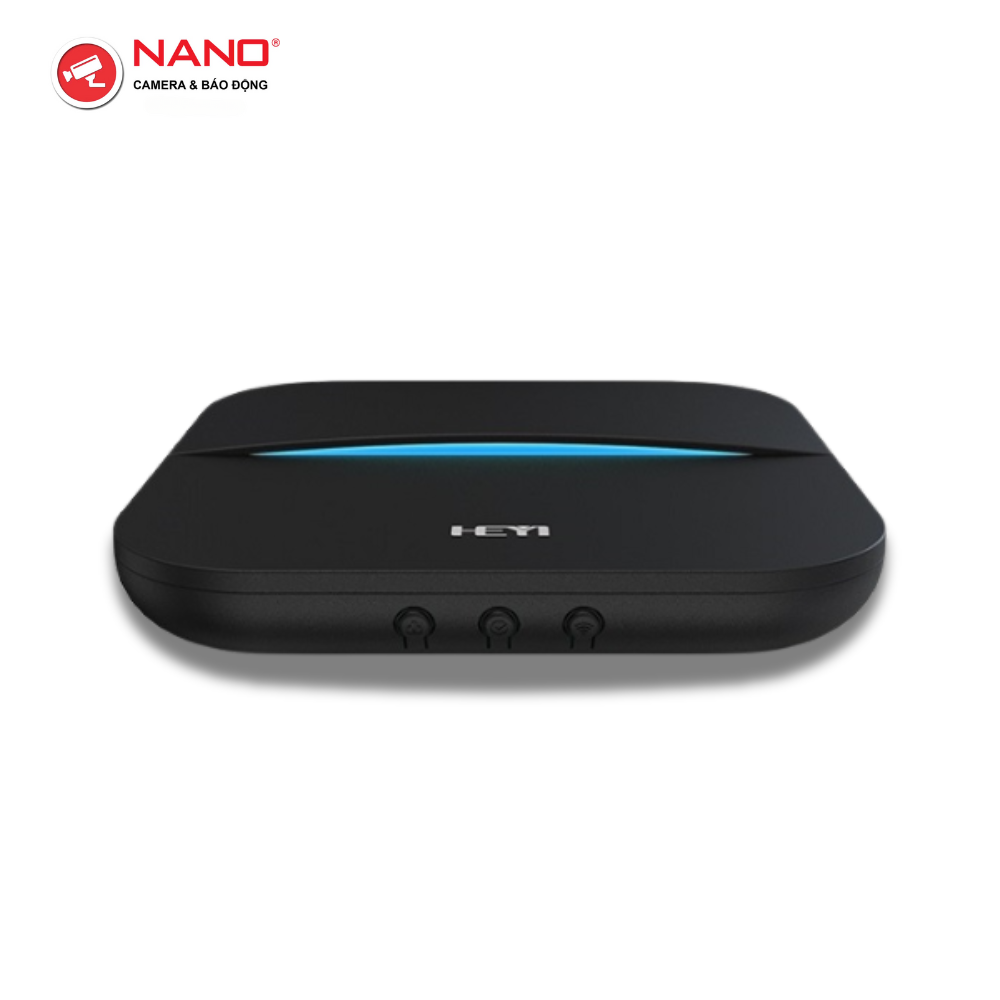

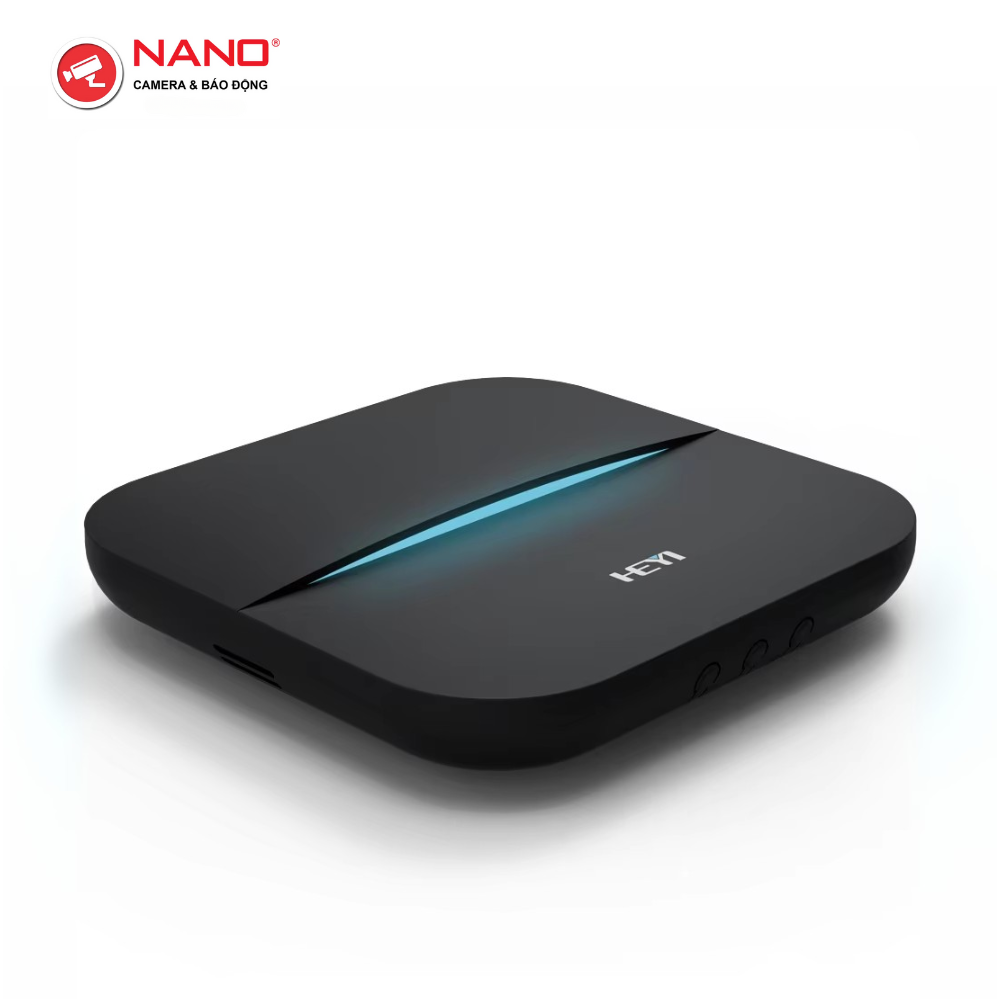

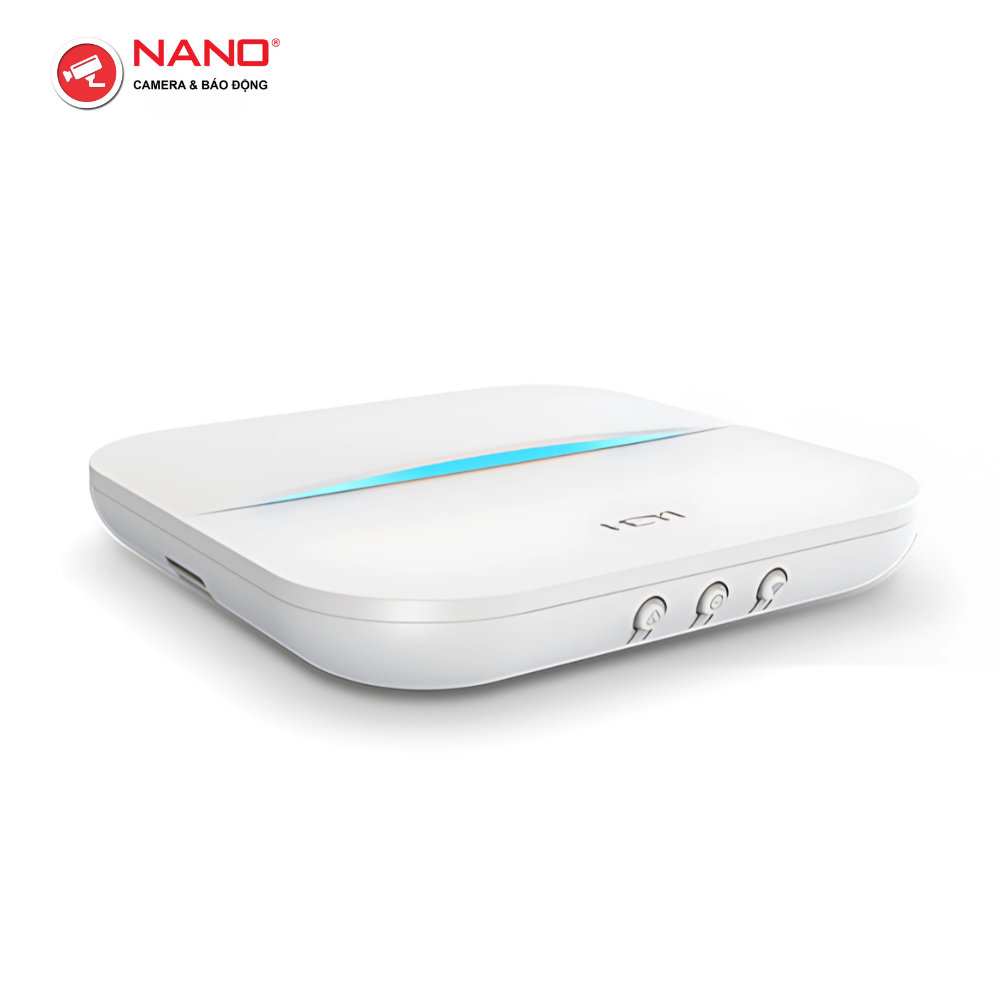

W20 has been designed for people who want to start a unique smart home adventure.
Perfect for apartments or small houses.
Life a little more color,
W20 a little more status indicator
The W20 has led lights in 5 colors, each representing a different state
of the device. You can see the device at a glance
GSM NetworkWIFI Network / DisarmWIFI ConfigurationEnroll / Home ArmAlarm / Away Arm
Check out W20 capabilities
Smart home life
W20 can combine with camera and application, which it’s convenient to check in time alarm through your phone wherever you are.With Input/Out module to linkage with other devices to make smart home life.
HY-W20 + Camera + Input Output Module + Intelligence Appliance
Smart home system
Heyi smart home takes you and your family everyday comfort and safety to a different level. Manage energy consumption at every single opportunity. Make it all happen with W20 smart home hub.
HY-W20 + Indoor Siren + Outdoor Siren + Outdoor Solar Siren
Smart emergency calling system
W20 can be combined with SOS box, SOS button and remote Control to form a smart emergency calling system. Care for the elderly and the sick. Providing an insurance policy for emergencies!
HY-W20 + SOS Box + SOS Button + Rmote Controller
Smart anti-theft system
W20 can be combined with door/window protector,
PIR detector and remote controller to form a smart
anti-thief system,
which can protect all aspects of your home.

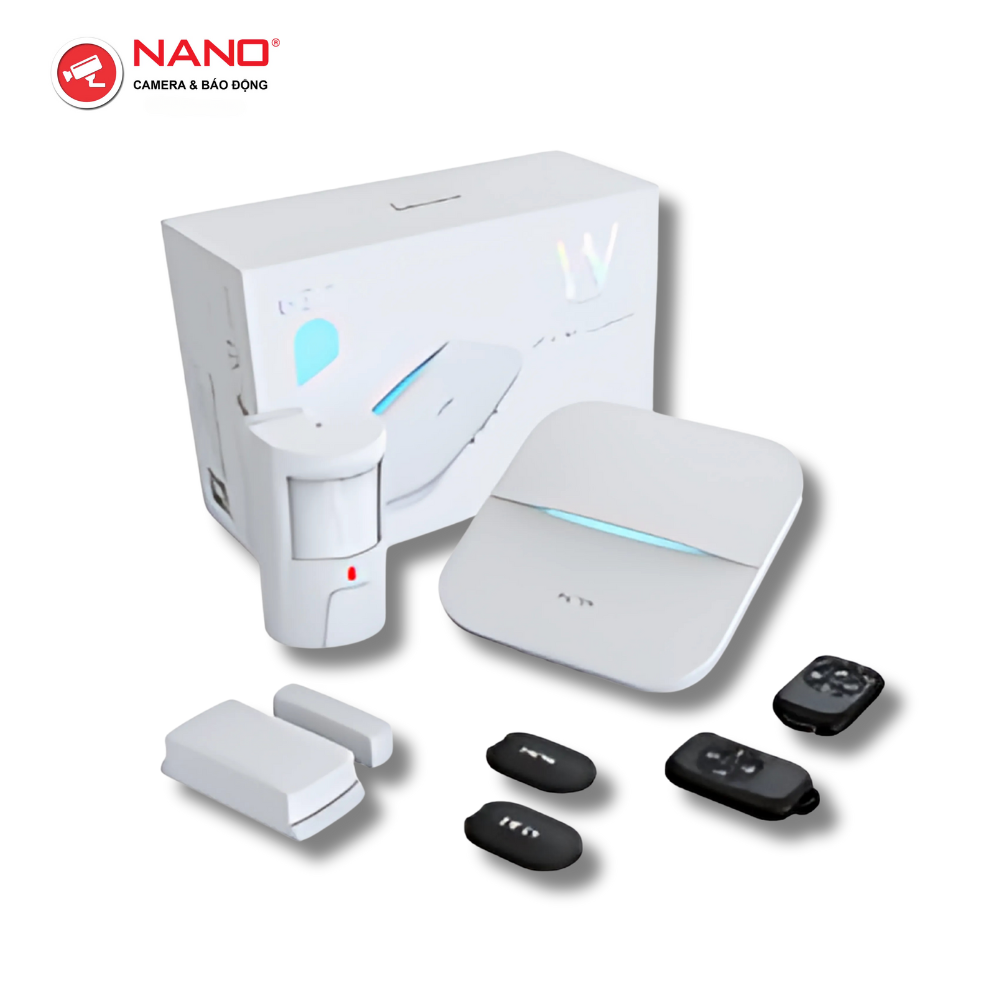

HY-W20 + Door/Window Protector + Pir Detector + Rmote Controller
Live comfortably, peacefully and quietly with the W20
Silent mode to protect your loved ones from interruptions.
Make life more comfortable and pleasant.
DIMENSIONS
Height 25mm
Width 140mm
Length 141mm
GENERAL INFORMATION
Power AC100V~240V
Battery 3.7V/800mAh
Built-in siren 80dB(within 1M)
Wireless working frequency 433MHz
Working temperature 10°C- +50°C
Humidity 40% ~ 70%
SPECIFIC INFORMATION
GSM Working Frequency 850MHz, 900MHz, 1800MHz, 1900MHz
GSM Emitting Frequency ≤2W(850/900MHz), ≤1W(1800/1900MHz)
WIFI standard 802.11 b/g/n
WIFI frequency 2.4G
WIFI encryption mechanism WEP / WAP-PSK / WPA2-PSK
Networking protocol IPv4, TCP/UDP/HTTP
Wireless distance PIR detector and alarm panel: ≥400m (in the open area)
Door sensor and alarm panel: ≥200m (in the open area)
Remote controller and alarm panel: ≥100m (in the open area)
Siren and alarm panel: ≥300m( in the open area)
