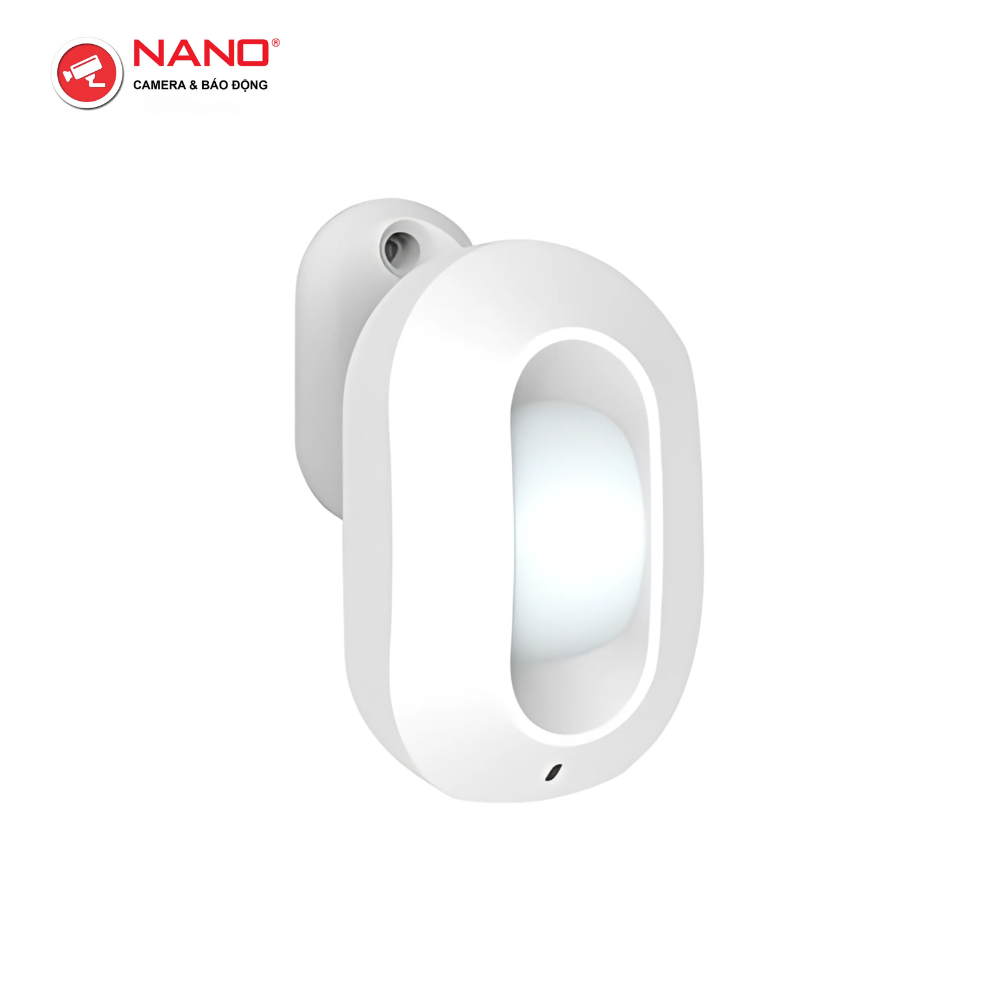

More Secure Sensor
Wire transmission of infrared detection information
Don’t worry about wireless interference
Stealth infrared detection, No place to hide
High precision, anti-interference infrared detection.
Detect moving objects immediatel
Works with HEYI app
We have created a special series of the Motion Sensors
which work with HEYI app.
Equipped with universal bracket, with 360° rotation angle, more optional installation.
The HEYI System allows you to arm your devices.
In case of motioning, an alarm scene
will be activated and notification will be sent.
Protection from tampering and damage
The HEYI PIR Sensor will immediately inform you
about any attempts to remove the sensor or open its case.
You can be sure that you and your family are protected.
For your convenience
or, by choosing appropriate settings, it won’t bother you at all.

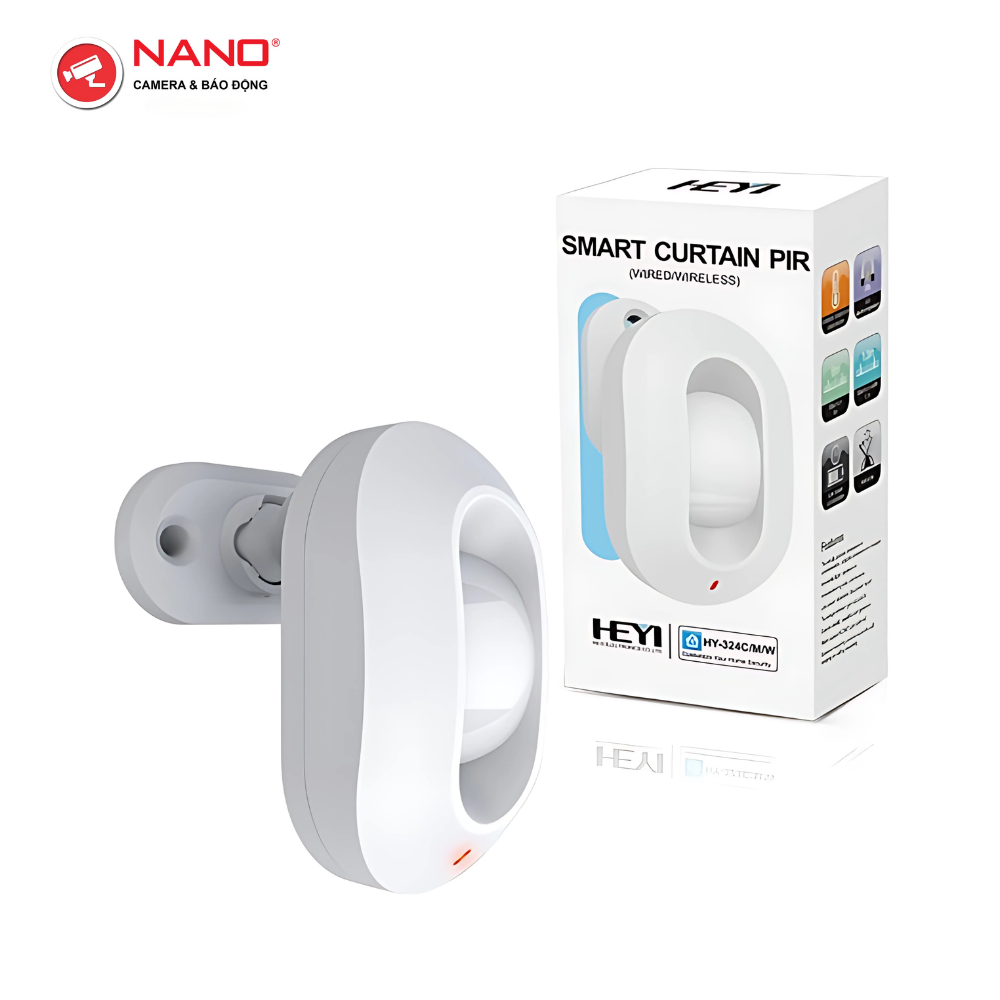

HY-323 Wired/Wireless HY-324 Wired/Wireless
Height 30mm Height 40.5mm
Width 118mm Width 56mm
Length 118mm Length 94mm
Comparison HY-323C HY-323W HY-324C HY-324W
Power DV9-15V DC 3V DV9-15V DC 3V
Current 25mA 20mA 25mA 20mA
Alarming output 5 Secnds 5 Secnds 5 Secnds 5 Secnds
Detective distance Wired Wireless 300m(in the open area) Wired Wireless 300m(in the open area)
Detective range 9m 9m 9m 9m
Detection angle 360° 360° Horizontal6° Vertical 130° Horizontal6°Vertical 130°
Wireless frequency / 433MHz / 433MHz
Operating temperature -10°C ~ +50°C -10°C ~ +50°C -10°C ~ +50°C -10°C ~ +50°C
