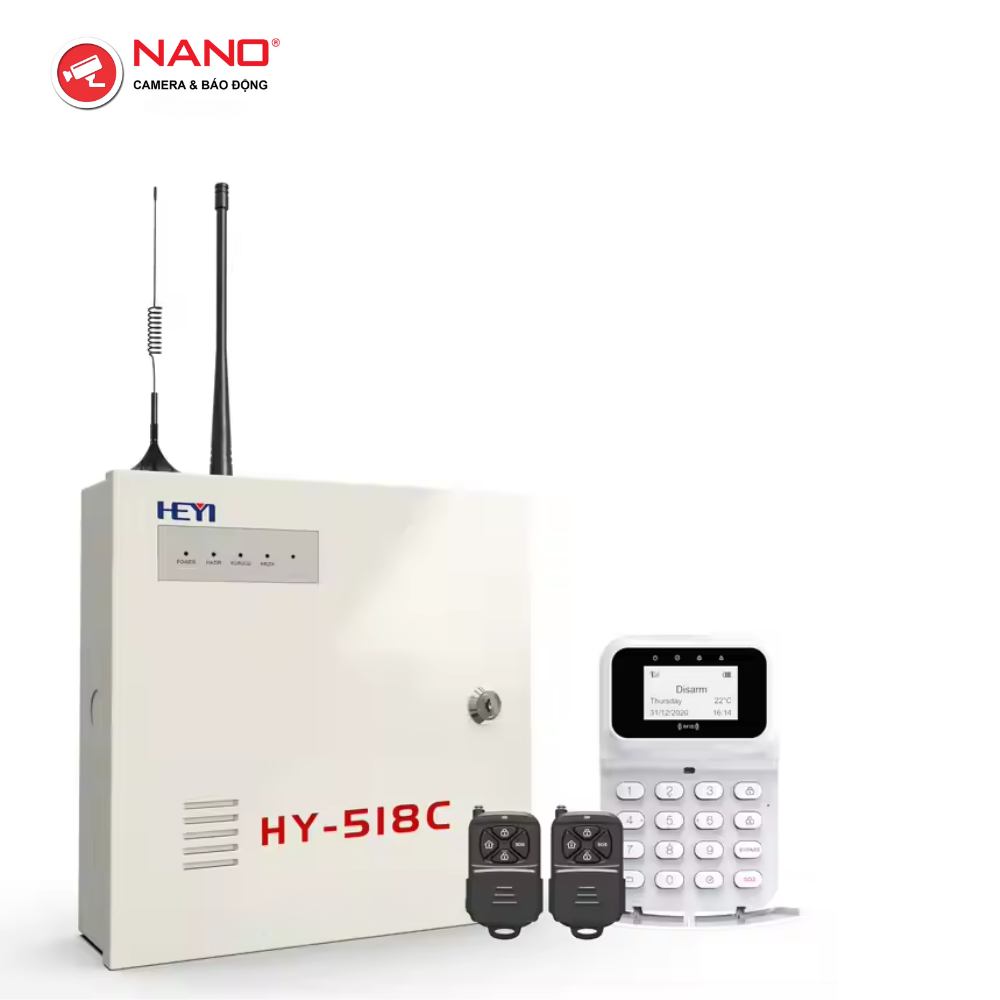

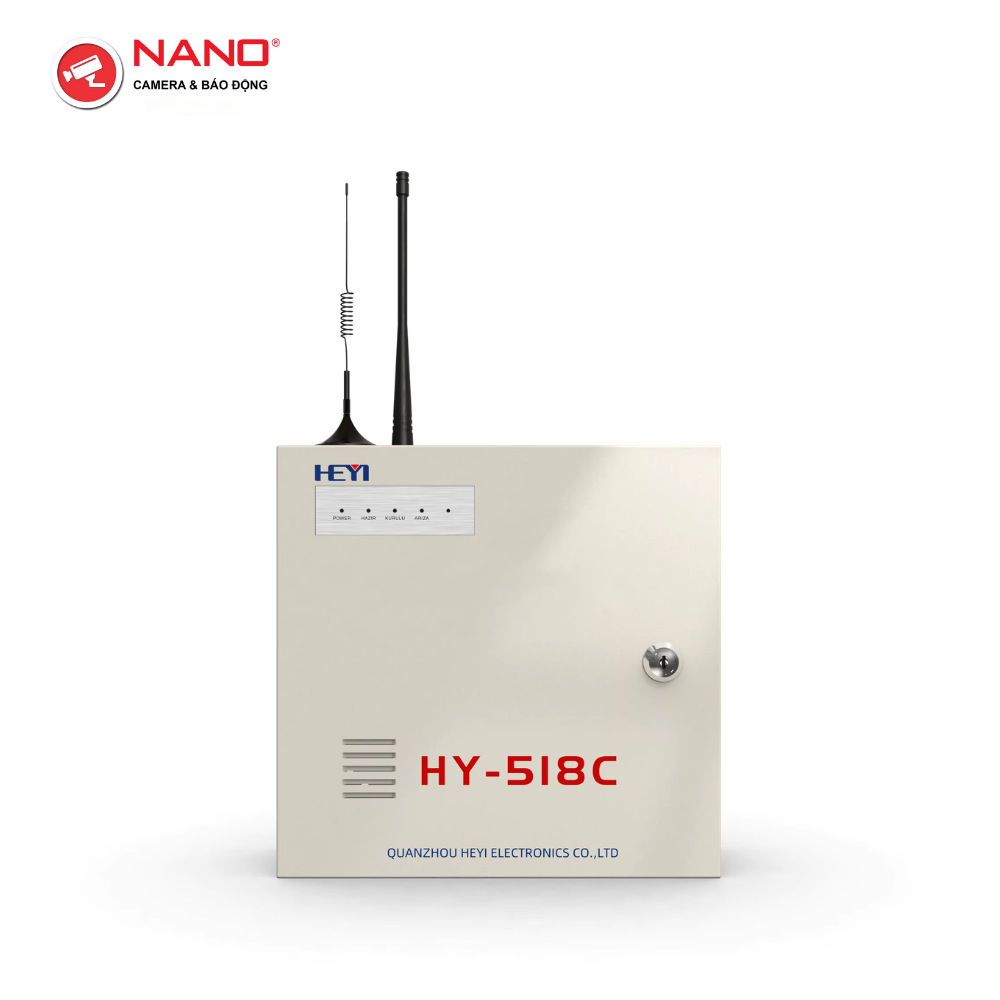

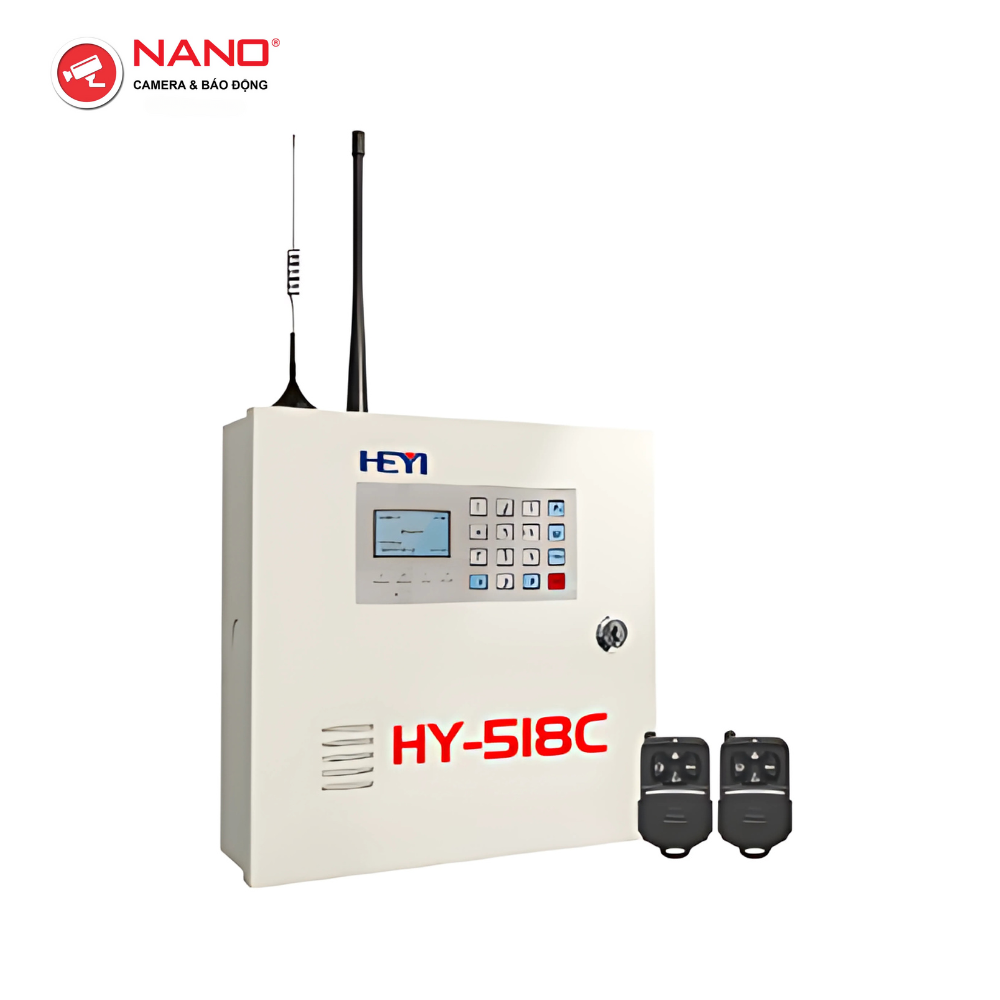

HY-518C-M (with Indicators)
The Smart City Guardian
Smart anti-theft system
518C-M can be combined with Door/Window Sensor, Pir Detector and Rmote Controller to form a Smart anti-theft system. Protect your home from all aspects!
HY-518C-M + Door/Window Sensor + Pir Detector + Rmote Controller
Smart fire and gas detecting system
518C-M can be combined with Smoke Detector, Gas
Detector and water leakage detector to form a Smart fire and gasdetecting system.
Fire protection necessary at home!
HY-518C-M + Smoke Detector + Gas Detector + Water Leakage Detector
Smart emergency calling system
518C-M can be combined with SOS Box, SOS Button
and Rmote Controller to form a Smart emergency
calling system. Care for the elderly, the sick.
Provide an insurance policy for emergencies!
HY-518C-M + SOS Box + SOS Button + Rmote Controller
Smart home life
518C-M will increase the temperature in the kitchen
when you prepare your lunch and even take care of
proper comfort in your living room right after you
get back home. Share the pleasure of home
automation with all your guests.
HY-518C-M + Camera + Input Output Module + Intelligence Appliance
Smart home security system
518C-M can be combined with Indoor and Outdoor/outdoor Solar Siren to form a smart home security system to protect Your life and property.
HY-518C-M + Indoor Siren + Outdoor Siren + Outdoor Solar Siren
DESIGN
HY-305D wired HY-305E wireless HY-SWK01 wireless
DIMENSIONS
Height 7mm
Width 260mm
Length 264mm
GENERAL INFORMATION
Power AC power 220V±15%
Battery 12V/7Ah
Built-in siren 90dB(within 1M)
Wireless working frequency 433MHz
Assit output current 350mA
Siren output current 350mA
Working temperature 10°C- +50°C
Humidity 40% ~ 70%
SPECIFIC INFORMATION
Wireltess distance PIR detector and alarm panel: ≥400m (in the open area)
Door sensor and alarm panel: ≥200m (in the open area)
Remote controller and alarm panel: ≥100m (in the open area)
Siren and alarm panel: ≥300m( in the open area)
Optional modules
GSM working freaquency 850MHz, 900MHz, 1800MHz, 1900MHz
GSM emission frequency ≤2W(850/900MHz), ≤1W(1800/1900MHz)
WIFI standard 802.11 b/g/n
WIFI frequency 2.4G
WIFI encryption mechanism WEP / WAP-PSK / WPA2-PSK
Networking protocol IPv4, TCP/UDP/HTTP
