HY-W5
Secure your life
WIFI/PSTN optional alarm system
W5 is designed for those who want a smart and safe home.

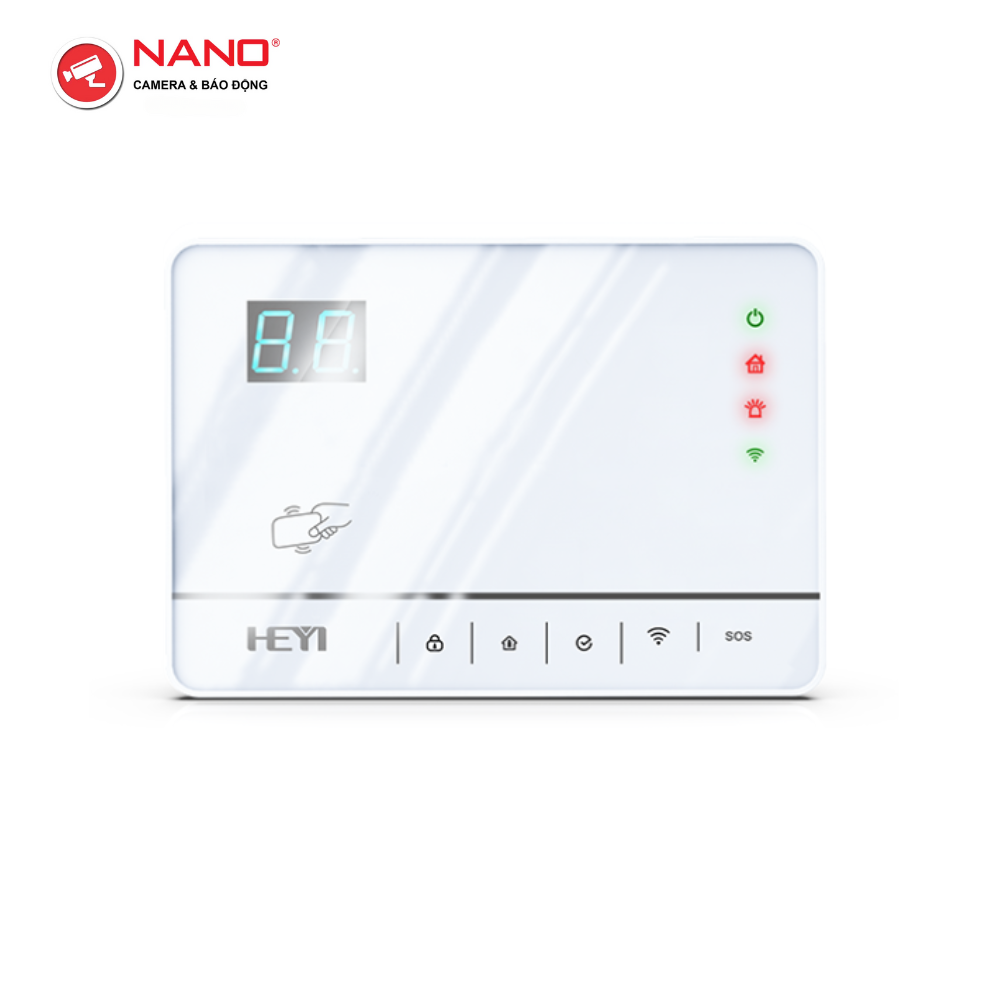

The heart of smart home – HEYI W5
The heart and mind of smart home-W5, constantly protects the comfort and safety of your entire family.
The smart hub manages and communicates with all smart system data from sensors to remote control and gives an output to perform approximate actions.
Check out W5 capabilities
W5 smart home system supports you in many areas of life.
Smart fire and gas detecting system
W5 can be combined with Smoke Detector, Gas
Detector and Water leakage Detector to form a Smart
home security system.
Fire protection is necessary at home!
HY-W5 + Smoke Detector + Gas Detector + Water leakage Detector
Smart emergency calling system
W5 can be combined with SOS Hanging Button, SOS Button
and Rmote Controller to form a Smart emergency
calling system. Care for the elder, the sick.
Provide a safe and convenient environment
HY-W5 + SOS Hanging Button + SOS Button + Rmote Controller
Smart home life
W5 can be combined with camera and application, which it’s convenient to check alarm issues in time through your phone wherever you are. With Input/Output module to linkage with other devices to make smart home life.
HY-W5 + Camera + Input Output Module + APP
Smart home security system
W5 can be combined with Indoor and Outdoor/outdoor Solar Siren to form a smart home security system to protect Your life and property.
HY-W5 + Indoor Siren + Outdoor Siren + Outdoor Solar Siren
DIMENSIONS
Height 31mm
Width 136mm
Length 195mm
GENERAL INFORMATION
Power AC100V~240V
Battery 3.7V/800mAh
Built-in siren 90dB(within 1M)
Wireless working frequency 433MHz
Output current of wired horn 150mA
Working temperature 10°C- +50°C
Humidity 40% ~ 70%
SPECIFIC INFORMATION
WIFI standard 802.11 b/g/n
WIFI frequency 2.4G
WIFI encryption mechanism WEP / WAP-PSK / WPA2-PSK
Networking protocol IPv4, TCP/UDP/HTTP
Wireless distance PIR detector and alarm panel: ≥400m (in the open area)
Door sensor and alarm panel: ≥200m (in the open area)
Remote controller and alarm panel: ≥100m (in the open area)
Siren and alarm panel: ≥300m( in the open area)
